Adding placeholders for video sources

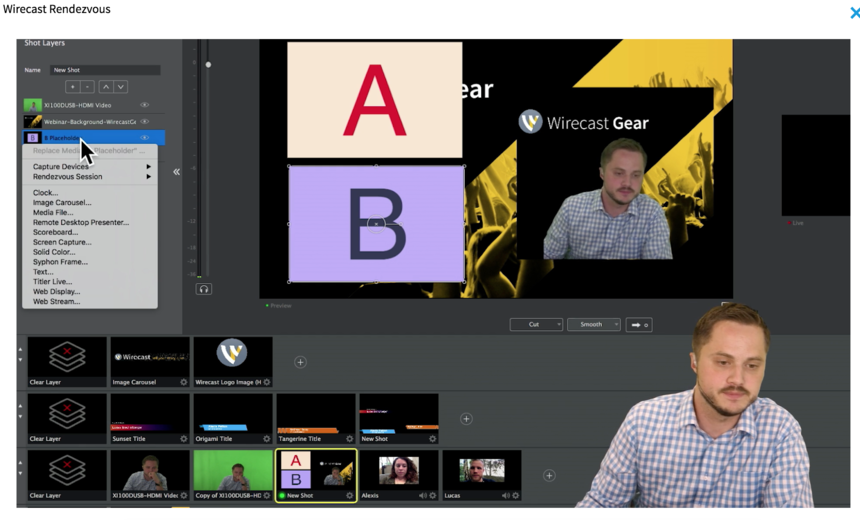

I am trying to set up custom templates for news feed via Facebook Live. This is briefly shown in the tutorial video "Rendezvous - Part 1" (see screenshot)

I have added media files (like the A & B placeholders in this screenshot) to my shot to use and replace with either a video capture device or Rendezvous session but I can't seem to get the drop down menu that appears here.

I am currently using a MacOS on High Sierra and my version of Wirecast is v 8.2.0.

15replies Oldest first
  • Oldest first
  • Newest first
  • Active threads
  • Popular
  • Right Click on the Placeholder with the mouse.


  • CraigS The right-click doesn't seem to be working in this case. Right-click will work everywhere else in the program except for over shot layers. Could this be an issue with the program?

  • Josephine Moore It works on our end so as expected. It may be something about your config.

    Try reseting Wirecast Preferences. Wirecast > Help > Send Support Information but click on lower left Reset Preferences. Please test with a New Blank Document.

  • CraigS I have followed these steps, but still nothing. Any other suggestions?

  • Josephine Moore Try uninstalling and Reinstalling Wirecast.

  • When ever I try to replace a placeholder with a video stream I have to resize the video to fit the area I want. Is there a way so that it scales to the size of the placeholder?


    Because if it doesn't, it doesn't seem like there is a whole lot of use for placeholders because I still have to go through the effort of re-sizing and setting up each shot.

  • It seems like the placeholders are closer to a 4:3 aspect ratio than 16:9 so if I stretch the placeholders to fit the 16:9 frames then when I bring in my 16:9 video it get overly stretched out, and I have to resize it down if that makes sense?

  • Adam Zimmer You've accurately described placeholders as they currently work. They don't cause sources to confirm. You have to do that after the fact in Shot Layer Properties (Scale and Crop functions). Basically they just the position. Please do make a feature request to change their behavior.

    Wirecast Feature Request

  • Adam Zimmer  and CraigS   I found a way to make it work. The place holders as you said do hold the place and normally when you replace them with footage the footage is MUCH bigger than the place holder. But after doing some experimenting I found that when I scale the place holder and then replace it with footage, the footage also scales to that amount. Thus, I know I want my rendezvous guests to be at 34% when I bring them into the shot. So I scale my placeholder to that size. Then when I replace the placeholder with the footage they are coming in at exactly the right size.

    The next trick was to get them in the proper location. I logged into rendezvous from my cell phone and again from a PC (just to see if there would be any difference. I lined up the shots where I wanted them and then turned the video into place holders. You can locate the placeholder files in the wirecast resources folder (telestream --> wirecast --> resources --> a.jpg or b.jpg etc.). Now the placeholders are exactly where they need to be so whenever I convert them to a rendezvous guest, they are the correct size and in the correct location where I need them to be. I saved this as a shot and it functions like a template. All I have to do is change the placeholder to the guests video and everything works as it should. I do not have to resize or change anything every time I start a new session. The template works! I tried this just to make sure having other people call in from different phones. One with an I Phone, I called in with a Samsung, one person called in with a webcam, I tried from an HP PC, and all the videos remain at the size I scaled them to. So that confirms this method works with many different kinds of cameras.

    Hope this helps someone in need. I was searching for days for an answer to this problem.

  • John Spellman Thanks for that detailed explanation. Please do consider making a feature request to make this workflow easier (matching placeholder to desired shot size). Fill out the feature request form and include the above description and perhaps we can work on the user interface and workflow for this.

    Wirecast Feature Request Form

  • I have the same issue as Josephine had above... I'm on a Mac and I know how to right click or control-click but neither is working to change the source from a placeholder graphic... How was this fixed? Thank you!! Gina

  • Gina Fant-Simon said:
    I'm on a Mac and I know how to right click or control-click but neither is working to change the source from a placeholder graphic.

    You may need to explain further as it does work. Replacing one shot with webcam and the other with the clock. Right click and replace with any source you have.

  • Gina Fant-Simon
    Also works clicking right on the Preview window without opening the panel


  • CraigS Try doing that exact thing but use the "two together" template.

  • Matthew Potter That works as well.
