No video display in Wirecast using Blackmagic Ultra mini

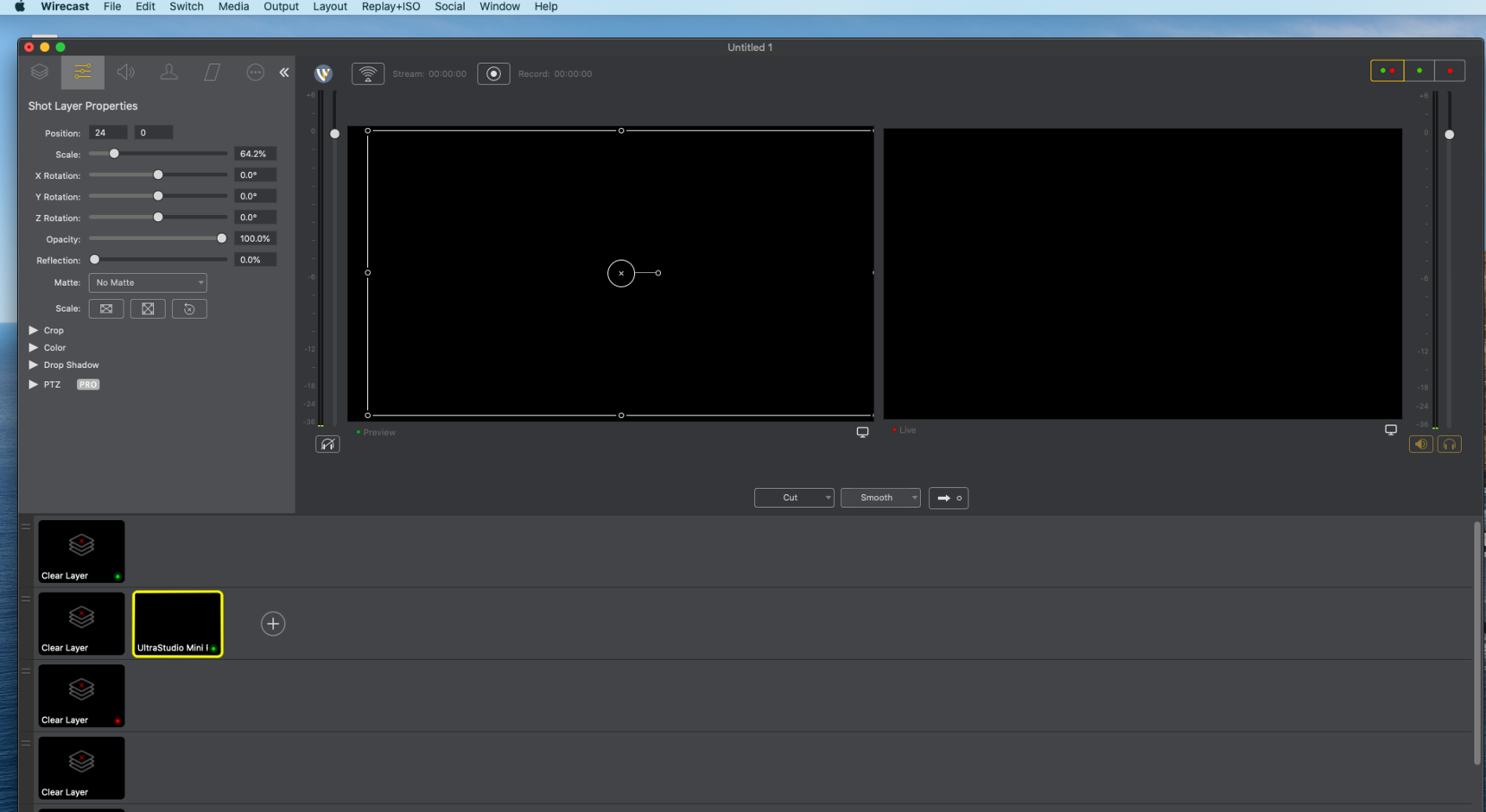

I am not receiving a display picture in Wirecast. I have a Lumix GH5 and Blackmagic Ultra Studio Mini as my capture card. I have it plugged in as HDMI to Thunderbolt. Wirecast Recognizes the Ultrastudio but no display picture. Could it be my camera settings or something?

4replies Oldest first
  • Oldest first
  • Newest first
  • Active threads
  • Popular
  • Please test in Blackmagic Media Express.
    Please make sure you're using the current BMD driver which is 11.6.
    Please make sure you've updated to Wirecast 14.0.1.

    Like
  • Its not showing up in Blackmagic express.

    Like
      • CraigSModerator
      • Telestream Desktop Forum Moderator
      • CraigS
      • 8 days ago
      • Reported - view

      Jessica Porter It's possible the output settings of the camera are not supporting by the by the Mini. Certain frame sizes and frame rates aren't supported.

      Make sure the camera HDMI out is set to HD 1080 and not 4K. I believe you can also set the HDMI output to Interlaced which would be most compatible. If you can get that to work you can then try 30p (or 25p for PAL countries).


      Like
      • CraigSModerator
      • Telestream Desktop Forum Moderator
      • CraigS
      • 8 days ago
      • Reported - view

      Jessica Porter
